Board anchor A-B/A-CB(LB)(OB)/AFC/AFL/AFO

Board anchor A-B/A-CB(LB)(OB)/AFC/AFL/AFO

Made of steel, securely fastens to
　plaster board and new construction materials.

･For mounting wall cabinets, frames and curtain walls

Use/Application

･ This board anchor can fasten equipment to new construction materials and plaster board that cannot take
    screws and nails, without using back plates or furring strips.
･ Fastening work is done with a screwdriver from one side. Screws can be repeatedly mounted and removed.



　Installation procedure

　hook dimensions


* Hook dimensions are not included in A409C/L/O dimensions.

　Reference

　　Board anchor tool： click here


ROHS

Specifications

Board anchor A-B/A-CB(LB)(OB)/AFC/AFL/AFO

Model No. size1 size2 size3 size4 size5 Q'ty/ carton Retail/User prices Remark
A405B 22mm 6.8mm 4×30mm 9mm 1～5mm 60 open price Body strength: 1.09kN
Maximum pull load: 0.38kN
A409B 34mm 6.8mm 4×40mm 9mm 3～9.5mm 55 open price Body strength: 1.69kN
Maximum pull load: 0.45kN
A416B 40mm 6.8mm 4×45mm 9mm 9～16mm 50 open price Body strength: 1.49kN
Maximum pull load: 0.41kN
A423B 48mm 6.8mm 4×55mm 9mm 16～23mm 50 open price Body strength: 1.42kN
Maximum pull load: 0.50kN
A438B 68mm 6.8mm 4×70mm 9mm 31～38mm 40 open price Body strength: 1.35kN
Maximum pull load: 0.46kN
*A514B 51mm 9.5mm 5×50mm 13mm 7～14mm 35 open price * This is no longer produced.
A409LB 34mm 6.8mm 4×40mm 9mm 3～9.5mm 40 open price with Ltype hook
Body strength: 1.69kN
Maximum pull load: 0.45kN
A409OB 34mm 6.8mm 4×40mm 9mm 3～9.5mm 40 open price with Otype hook
Body strength: 1.69kN
Maximum pull load: 0.45kN

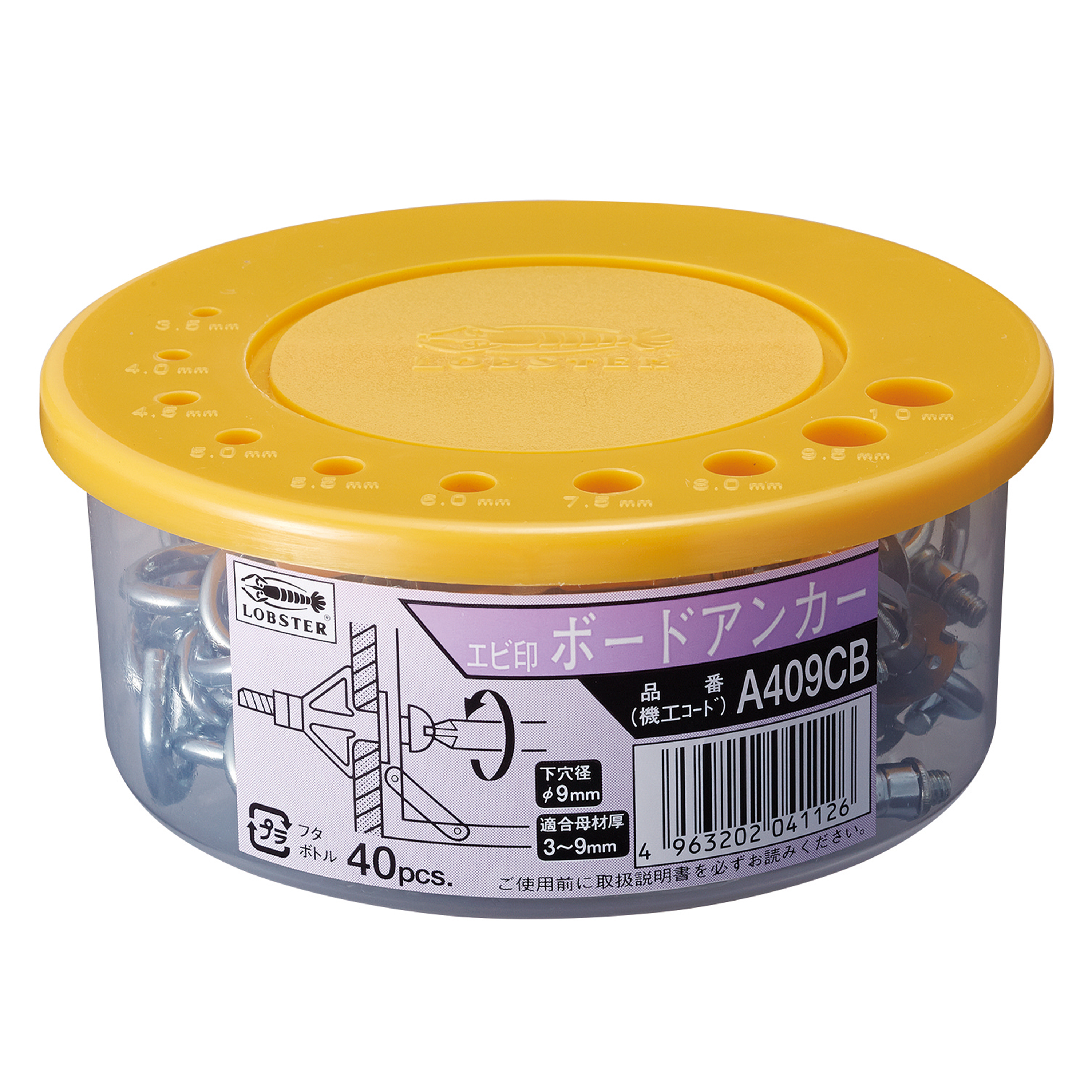

A409CB 34mm 6.8mm 4×40mm 9mm 3～9.5mm 40 open price with Ctype hook
Body strength: 1.69kN
Maximum pull load: 0.45kN
AFC 500 open price hook（Ctype）
AFL 500 open price hook（Ltype）
AFO 500 open price hook（Otype）

!IMPORTANT SAFETY INSTRUCTIONS

・To use the board anchor for Decola (decorative sheet), plastic, aluminum, steel, etc., board anchor tool BA-007 is required. (A-514)

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
