In-Line type air riveter (vacuum system) ARV015S(M)

In-Line type air riveter (vacuum system) ARV015S(M)

* This is no longer produced.

・In-line type & Vacuum System
・Ultra Jaws for longer jaw life
・Unique ergonomic in-line vertical design
・Ideal for fixed position assembly line workstations with overhead counterbalance approach
・Integrated vacuum system for mandrel retention and removal to an off-line receptacle
・Able to operate in conjunction with our exclusive ARF-700M autofeeding rivet presenter system

Use/Application

CEROHS

Specifications

In-Line type air riveter (vacuum system) ARV015S(M)

Model No. (Product) weight size1 size2 size3 size4 Use range Operating air pressure Usage jaws Traction power Retail/User prices Remark
ARV015S 1.4g 373mm 58mm 64mm 19.5mm φ2.4・3.2mm※ 0.5~0.6 "S" 3.4 open price ※※Cannot be used with φ3.2mm stainless steel blind rivets.
※φ3.2 cannot be used for 4 to 10 or more rivet sizes.
ARV015M 1.7g 406mm 96mm 64.5mm φ23.0mm φ2.4・3.2・4.0・4.8mm※ 0.5~0.6 "M" 8 open price ※Cannot be used with φ4.8mm stainless steel blind rivets.
※φ4.8 cannot be used for 6 to 12 or more rivet sizes.

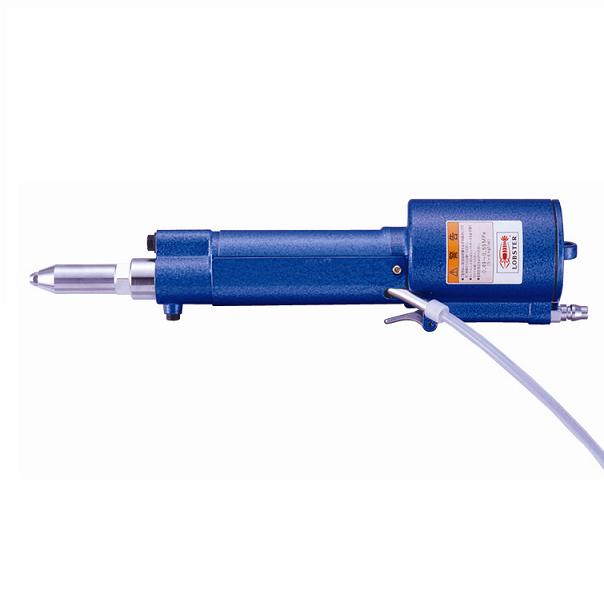

  • ARV015M

    ARV015M

!IMPORTANT SAFETY INSTRUCTIONS

・Be sure to read the instruction Manual and important Usage Advisery carefully and make sure that you understand them thoroughly before using this tool.
・Be sure to use under condition of construction.
・At the time of the attention and the activity in case of application, wear an eye protector.

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
