Hybrid adjustable angle wrench X premium series PUM-X

Hybrid adjustable angle wrench X premium series PUM-X

Highly demanded tool that provides quality and functionality of the highest class
“Functional beauty = Advanced function + Beauty”

Use/Application

【 Functions 】

Advanced function Ⅰ:
G-LESS (loose grip prevention) mechanism (PAT.)

・The PUM-X was the first among adjustable angle wrenches
  to adopt the G-LESS mechanism for resisting looseness in the vertical direction.


Advanced function Ⅱ
X-DRIVE

・Thanks to the stress relief structure, the new “X-DRIVE” disperses more stress applied to
  the edges than the conventional tools. Thus, the X-DRIVE can easily apply torque,
  enabling stable tightening and loosing work, without collapsing the edges.


Advanced function Ⅲ

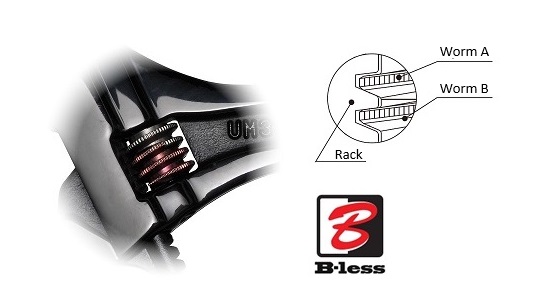

B-Less (backlash-free) mechanism

The lower jaw rack is sandwiched by
 “Worm A” and “Worm B” to the point that there is no gapping.



Advanced function
RFH (Round form handle)

・The newly shaped (round) handle easily fits the hand.


Beautiful finish:K-Finish (Mirror finished)

・High-grade chromium plating for corrosion resistance and wear resistance
・Solid, beautiful silver mirror finish and black mirror finish


Applicable bolt thread diameters and width across flats :Click here

ROHSPAT.

Specifications

Hybrid adjustable angle wrench X premium series PUM-X

Hybrid adjustable angle wrench X premium series PUM-X

Model No. (Product) weight size1 size2 size3 Jaw Capacity Bolt, nut maximum dimension Retail/User prices Remark
PUM30XB 170g 200mm 6mm 12.0mm 8~30mm M20 open price Specular surface finish(Black)[Discontinued]
PUM30XS 170g 200mm 6mm 12.0mm 8~30mm M20 open price Specular surface finish(Silver)
PUM36XB 300g 245mm 7mm 14.0mm 8~36mm M24 open price Specular surface finish(Black)[Discontinued]
PUM36XS 300g 245mm 7mm 14.0mm 8~36mm M24 open price Specular surface finish(Silver)
  • Illustrated view of case(Silver mirror finish)

    Illustrated view of case(Silver mirror finish)

!IMPORTANT SAFETY INSTRUCTIONS

・Adjust the width across flats with the bolt or nut firmly gripped at the back of the jaw.
・Turn the wrench toward the lower jaw.
・Do not extend wrenches with a pipe, etc.
・Do not use wrenches as a substitute for a hammer.
・Do not apply impact to wrenches by hitting them with a hammer, etc.

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
