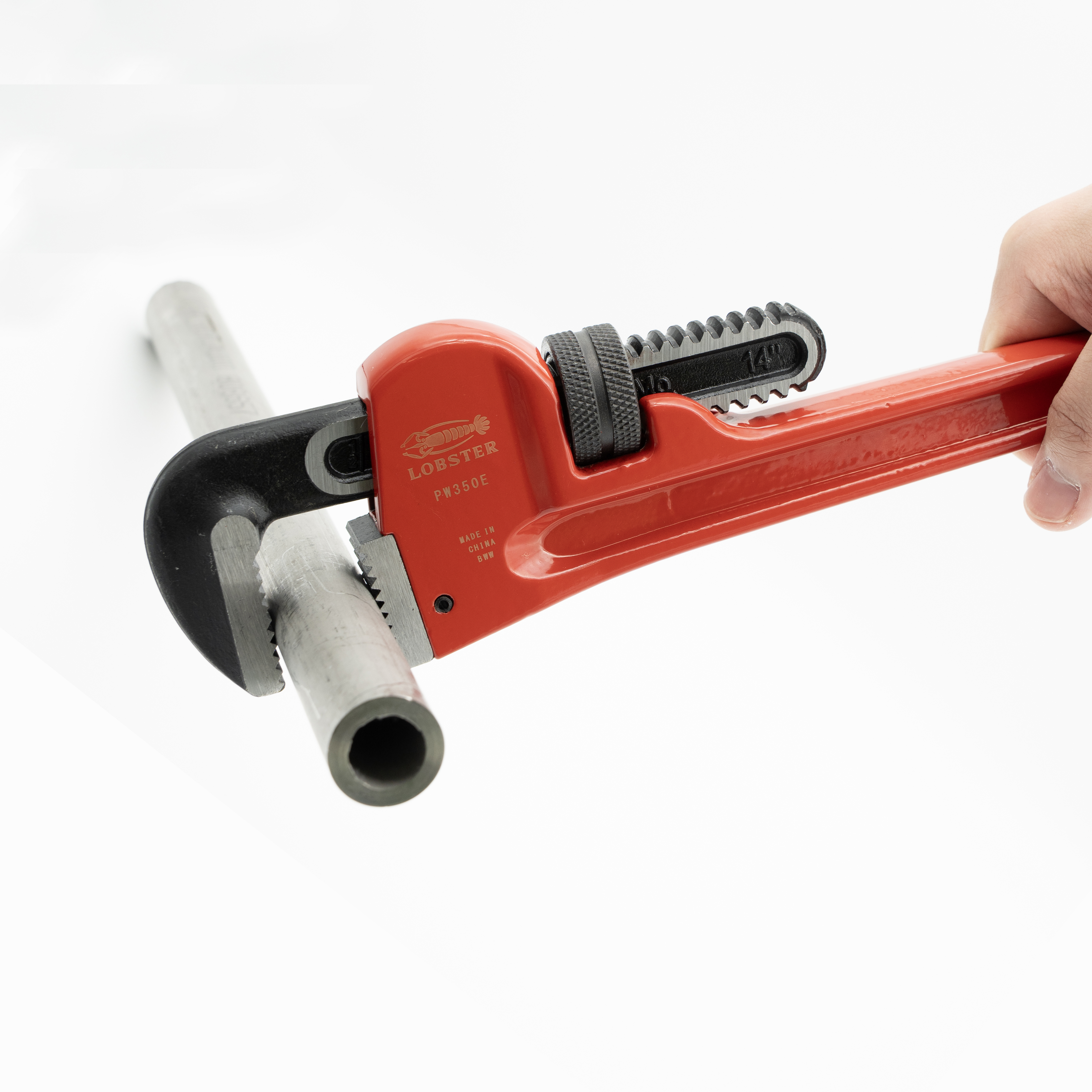

Pipe wrench(standard type)PW-E

Pipe wrench(standard type)PW-E

PW‑level durability with a cost‑efficient price point.

- Fully meets the JIS H‑grade strength requirements.
- Same size lineup as the PW‑series pipe wrenches.
- High cost‑performance model that maintains full strength while reducing overall cost.
- Secure bite with high‑frequency hardened jaws that resist deformation.

Use/Application

- For professional piping work.

ROHS

Specifications

Pipe wrench(standard type)PW-E

Model No. (Product) weight size1 size2 size3 size4 The outside diameter of the pipe grabbed (A display) Retail/User prices
PW150E 220g 82mm 120mm 20.5mm 11.5mm φ10~27mm(15A) ¥2,520
PW200E 390g 103mm 166mm 26mm 15mm φ10~35mm(25A) ¥2,600
PW250E 590g 128mm 217mm 30.5mm 17mm φ10~45mm(32A) ¥2,990
PW300E 910g 156mm 242mm 35.5mm 19.5mm φ10~60mm(40A) ¥3,790
PW350E 1260g 172mm 288mm 40.5mm 21mm φ10~65mm(50A) ¥4,450
PW450E 1920g 202mm 350mm 45mm 24mm φ10~78mm(65A) ¥6,500
PW600E 3090g 230mm 480mm 57mm 29.5mm φ10~80mm(65A) ¥10,790
PW900E 5750g 280mm 725mm 80mm 33mm φ14~120mm(100A) ¥25,400
PW1200E 10410g 356mm 1016mm 98mm 33mm φ14~150mm(125A) ¥59,870

!IMPORTANT SAFETY INSTRUCTIONS

- Use only within the allowable outer‑diameter range of the pipe.
- Grip the pipe firmly at the center of the jaws, positioned perpendicular to the pipe.
- Do not extend the tool by adding extra pipes or similar objects.
- Do not use the tool as a hammer.
- Do not strike the tool with a hammer or apply impact force.
- Do not use the tool if any abnormalities are found, such as chipped jaws, wear, or clogging.

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
