Air riveter R1A1PL

Air riveter R1A1PL

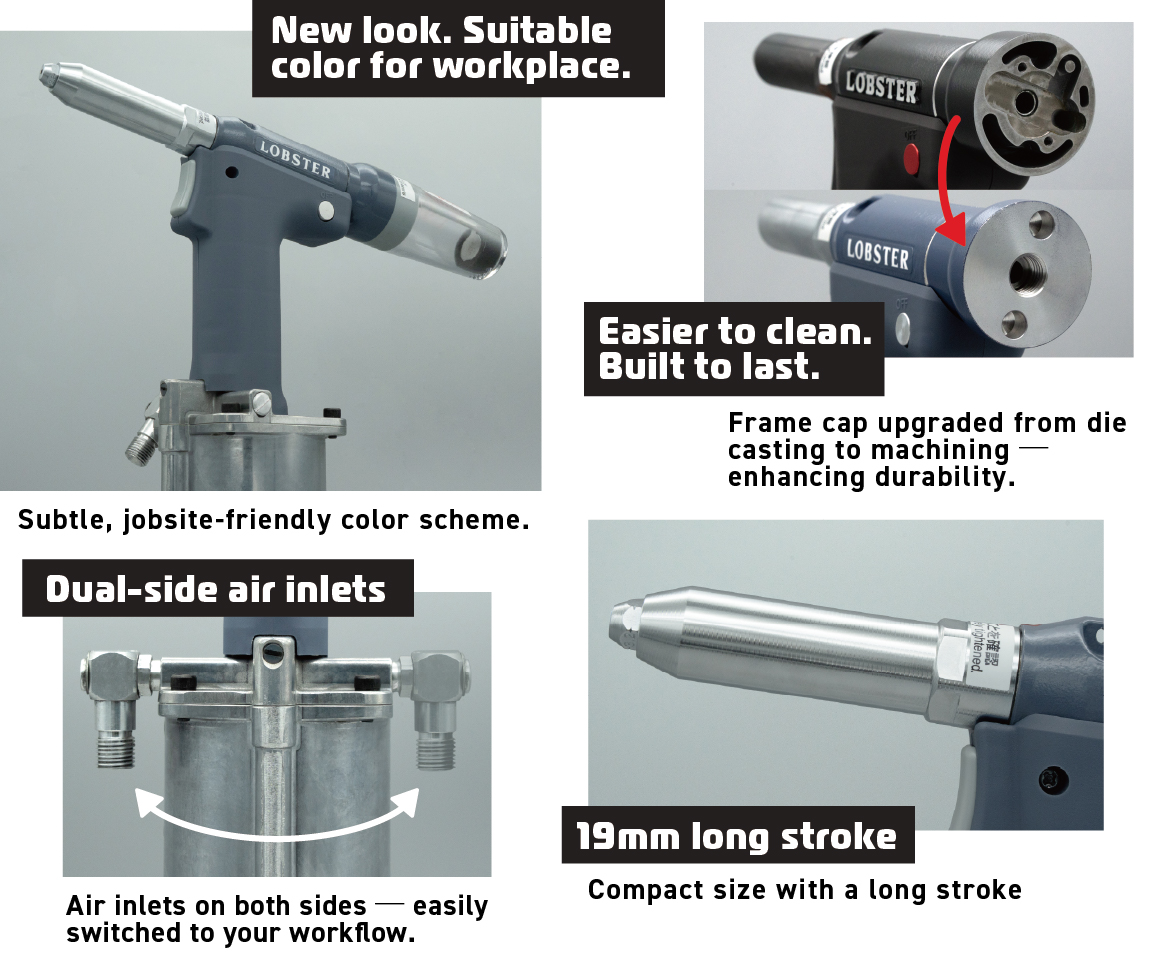

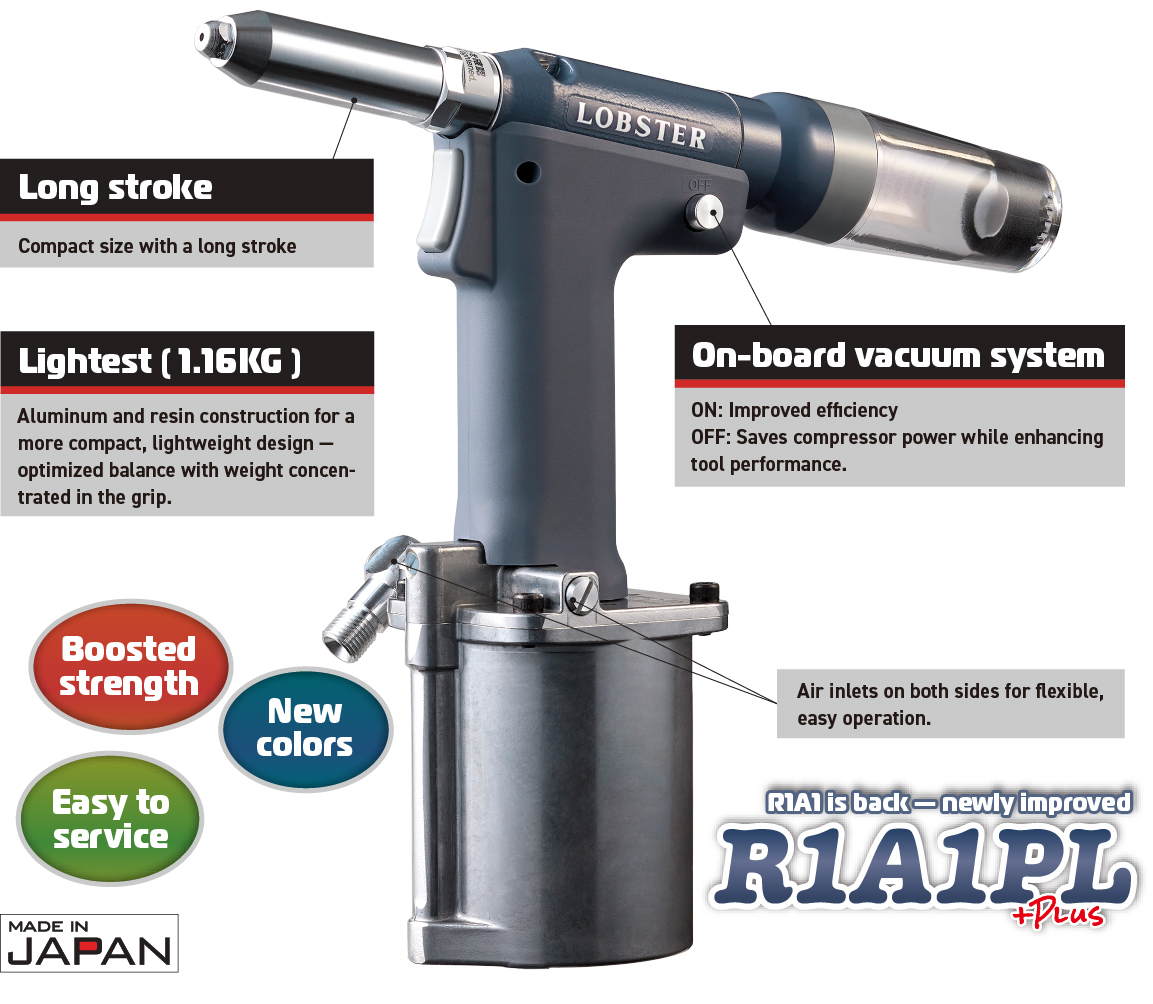

・The ultimate evolution of a standard model
・Lightest in its class
・Long-stroke design eliminates double-cutting loss
・Equipped with vacuum suction and discharge function (with ON/OFF switch)

Use/Application

Model No Model No. R1A1PL
Product weight 1.16kg
User range  Φ2.4、Φ3.2、Φ4.0、Φ4.8(All type listed in Lobtex catalog)
*Optional support:High-strength rivets NSTB
Stroke 19mm
Used air pressure 0.5~0.6MPa
Output 9.0kN(Traction power at 0.6MPa)
Sound Pressure level (Lpa) 75dB
Air Consumption Max. 82 L/min (Suction at 0.6MPa)
JAN Code 4963202016605
Package Item  nosepiece(Φ2.4、Φ3.2※、Φ4.0、Φ4.8)、guide tube(Φ2.4、Φ3.2)※
※Factory-installed on the main unit

★Click here to download the instruction manual.
   ↓ ↓ ↓
Download(R1A1PL)
本体 品番 R1A1PL
重量 1.16kg
リベット使用範囲  Φ2.4、Φ3.2、Φ4.0、Φ4.8(当社カタログ全材質)
オプション対応:高強度リベット 当社NSTB
ストローク 19mm
使用空気圧力 0.5~0.6MPa
出力 工具引張力 9.0kN(空気圧0.6MPa、吸引時)
騒音レベル 等価騒音レベルLAeq 75dB以下
空気使用量 1分当たりの空気使用量 82 L/min以下(空気圧0.6MPa、吸引時)
JANコード 4963202016605
セット内容  ノーズピース(Φ2.4、Φ3.2、Φ4.0、Φ4.8)、ガイドチューブ(Φ2.4、Φ3.2用)
※出荷時本体装着済
本体 品番 R1A1PL
重量 1.16kg
リベット使用範囲  Φ2.4、Φ3.2、Φ4.0、Φ4.8(当社カタログ全材質)
オプション対応:高強度リベット 当社NSTB
ストローク 19mm
使用空気圧力 0.5~0.6MPa
出力 工具引張力 9.0kN(空気圧0.6MPa、吸引時)
騒音レベル 等価騒音レベルLAeq 75dB以下
空気使用量 1分当たりの空気使用量 82 L/min以下(空気圧0.6MPa、吸引時)
JANコード 4963202016605
セット内容  ノーズピース(Φ2.4、Φ3.2、Φ4.0、Φ4.8)、ガイドチューブ(Φ2.4、Φ3.2用)
※出荷時本体装着済

Specifications

Air riveter R1A1PL

Model No. (Product) weight size1 size2 size3 size4 size5 size6 size7 size8 size9 size10 Use range Operating air pressure Retail/User prices
R1A1PL 1160g 297mm 265mm 106mm 35mm 89.5mm 72.5mm Φ77mm Φ42mm Φ21mm 6.5mm Φ2.4・3.2・4.0・4.8mm 0.5~0.6 open price

!IMPORTANT SAFETY INSTRUCTIONS

・Be sure to read the instruction Manual and important Usage Advisery carefully and make sure that you understand them thoroughly before using this tool.
・Be sure to use under condition of construction.
・At the time of the attention and the activity in case of application, wear an eye protector.

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
