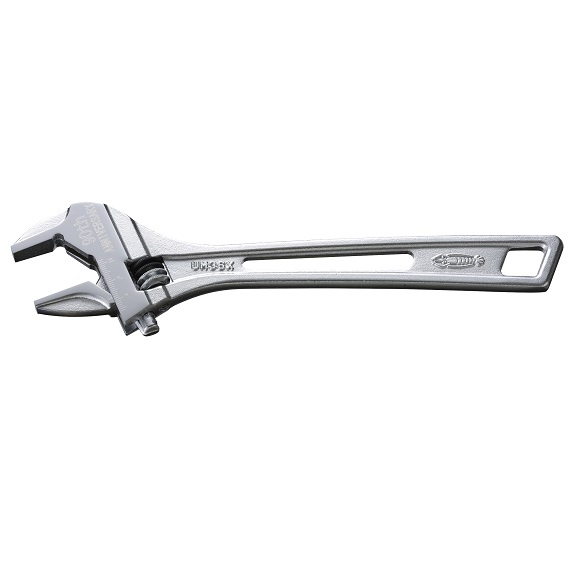

Hybrid adjustable angle wrench X(90th Anniversary Model:Limited number)

Hybrid adjustable angle wrench X(90th Anniversary Model:Limited number)

The 90th anniversary of the adjustable angle wrench.
Marked with anniversary laser marking.
Production limited items!!

・Fully limited production
・Laser marking of “90th ANNIVERSARY” for producing special feelings
・Added B-Less (backlash-free) mechanism to X series

Use/Application

● Functions

Advanced function“90th anniversary laser marking(PAT.)




Advanced functionⅡ“G-LESS (loose grip prevention) mechanism” (PAT.)

・The PUM-X was the first among adjustable angle wrenches to adopt the G-LESS mechanism for resisting looseness in the vertical direction.


Advanced functionⅢ「X-DRIVE」

・Thanks to the stress relief structure, the new “X-DRIVE” disperses more stress applied to the edges than the conventional tools. Thus, the X-DRIVE can easily apply torque, enabling stable tightening and loosing work, without collapsing the edges.


Advanced functionⅣB-Less (backlash-free) mechanism

・The lower jaw rack is sandwiched by “Worm A” and “Worm B” to the point that there is no gapping.


Advanced functionⅤRFH (Round form handle)

・The newly shaped (round) handle easily fits the hand.

Specifications

Hybrid adjustable angle wrench X(90th Anniversary Model:Limited number)

Model No. (Product) weight size1 size2 size3 Jaw Capacity Bolt, nut maximum dimension Retail/User prices
UM30XB 170g 200mm 6mm 12mm 8~30mm M20 open price
UM36XB 300g 250mm 7mm 14mm 8~36mm M24 open price

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
