Mini crimping tool for non-insulated crimp terminals and sleeves　AK1MA2

Mini crimping tool for non-insulated crimp terminals and sleeves　AK1MA2

Upgraded version of the predecessor AK1MA with newly added 5.5 sq hole for greater ease of use

・JIS certified mini-size model of predecessor crimping tool.
・Same price as the predecessor model even with the newly added crimping hole.

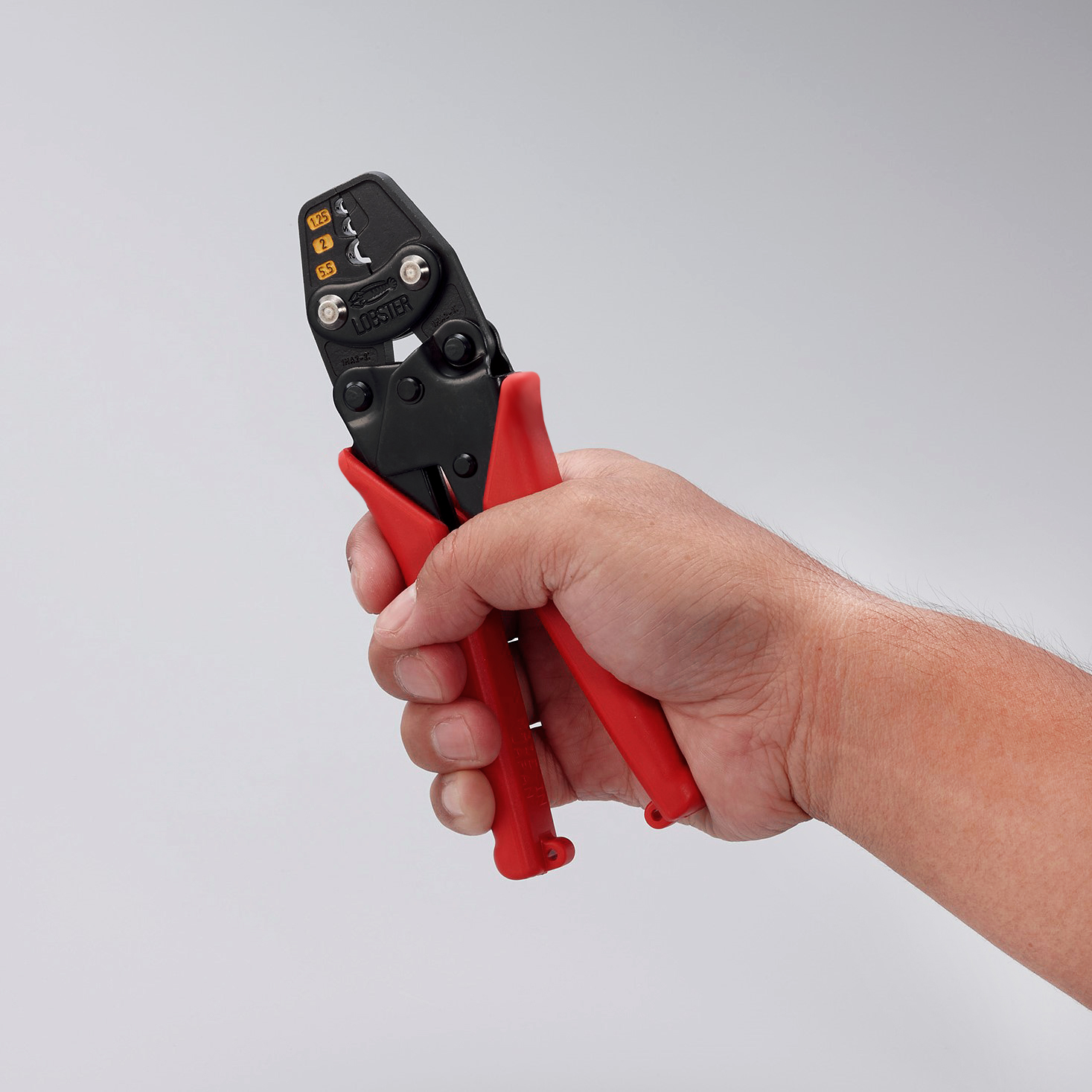

・The lightweight, compact pocket-size body fits in the palm of your hand.
・Built-in crimping check mechanism (New ratchet mechanism).
・Ergonomic elastomer grip for assured handling.

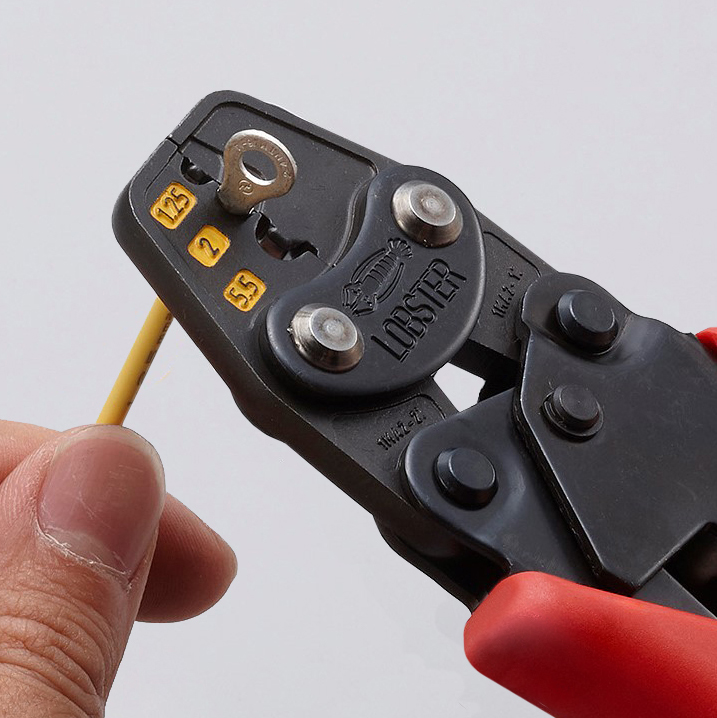

・Easily crimps terminals with one hand by holding them before insertion.



【Features】

●The 5.5-sq hole is newly added, ensuring greater ease of use.



●New JIS certified


 The AK1MA2 has passed durability testing for electric resistance,
 tensile strength, vibration fatigue, and temperature cycling.


●Combinations of electric wire connector and wire



[Specification change]

we are in the process of changing the grip shape in response to user feedback such as "they get caught in tool bags" and "they are hard to take out."
We ask for your understanding that we will be gradually changing the grip shape.

ROHSJIS

仕様

Mini crimping tool for non-insulated crimp terminals and sleeves　AK1MA2

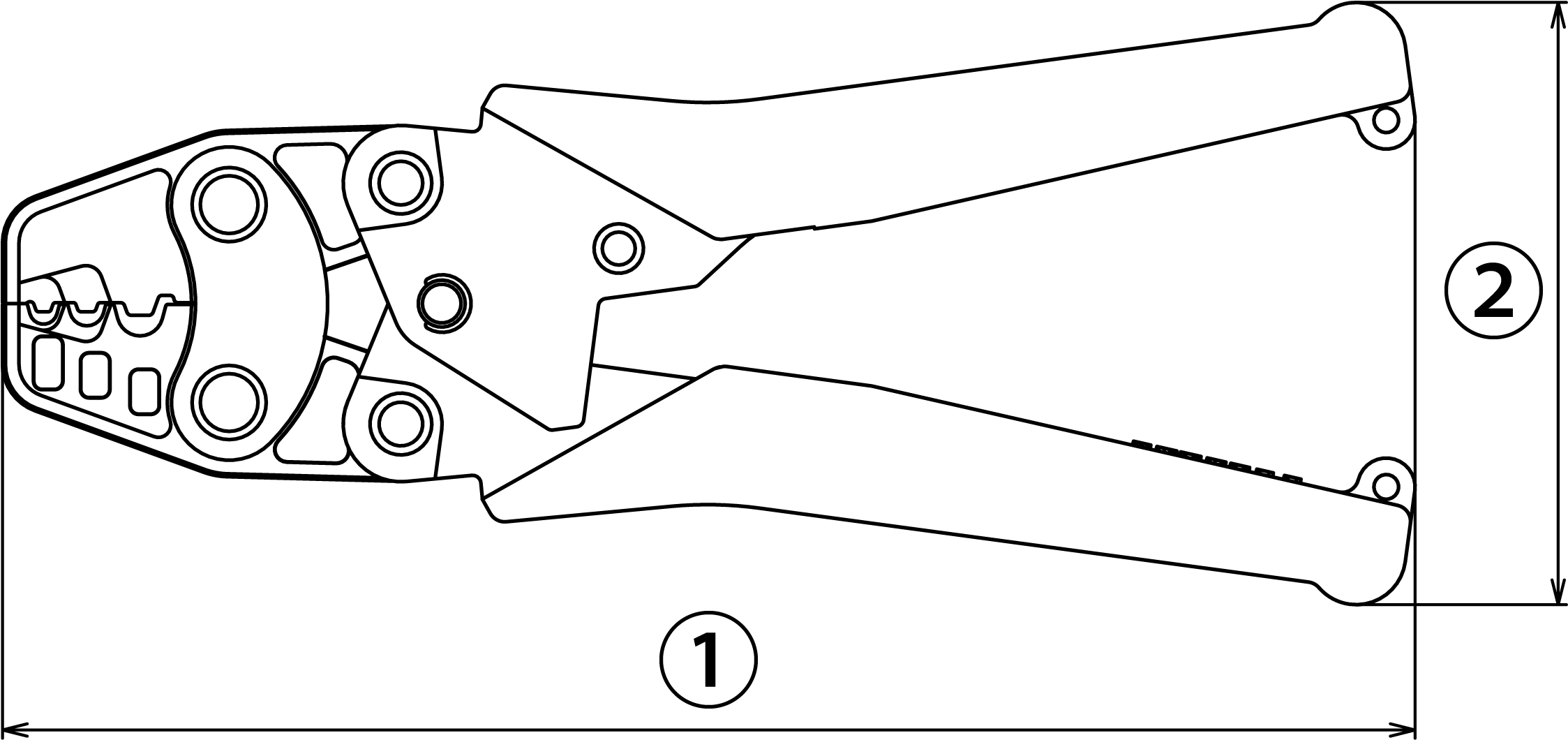

品番コード 商品重量 寸法１ 寸法２ 使用範囲 参考価格
E-AK1MA2 260g 172mm 54mm 1.25、2、5.5mm2 オープン価格

!表記数値のご注意

※ 寸法・重量などは公称値ですので、多少の数値の上下があります。
※ 改良の為、仕様等を予告なく変更することがあります。
※ 記載の価格は｢参考価格｣で消費税は含まれておりません。
ご購入の際はLOBSTER(エビ印)商品の取扱店にご確認ください。
