For mortar, blocks and bricks, SE

For mortar, blocks and bricks, SE

Diamond Wheel Segment Type (Dry Cutting)

- Delivers outstanding cost performance with excellent sharpness.
- Segmented type rim delivers fast, efficient cutting with excellent cutting performance.

Ideal for mortar, concrete blocks, bricks, slate, concrete products, roof tiles, ceramic tiles, and similar materials.




Since introducing diamond tools in 1983, LOBSTER diamond tools have supported professionals on job sites for over four decades.
Our trusted diamond wheel series has now been re-engineered as keenCutter Pro. With a lineup organized by application, it is now easier to select the right wheel for the job while delivering improved usability and performance.

 Product Range of "keenCutter Pro"

For Hard Concrete & Reinforced Concrete

▶WLH series | Laser-Welded Diamond Wheel Wave Type (Dry Cutting)
Ideal for cutting hard concrete, precast concrete products (U-shaped gutters, etc.), and various types of stone.

For General Concrete

▶WS series | Diamond Wheel Wave Type (Dry Cutting)
Ideal for cutting all types of concrete products, mortar, concrete blocks, bricks, slate, roofing tiles, ceramic tiles, and similar materials.





▶SS series | Diamond Wheel Segmented Type (Dry Cutting)
Ideal for cutting all types of concrete products, mortar, concrete blocks, bricks, slate, roofing tiles, ceramic tiles, and similar materials.

For mortar, blocks and bricks

▶WE series | Diamond Wheel Wave Type (Dry Cutting)
Ideal for cutting mortar, concrete blocks, bricks, slate, all types of concrete products, roofing tiles, ceramic tiles, and similar materials.


For tile

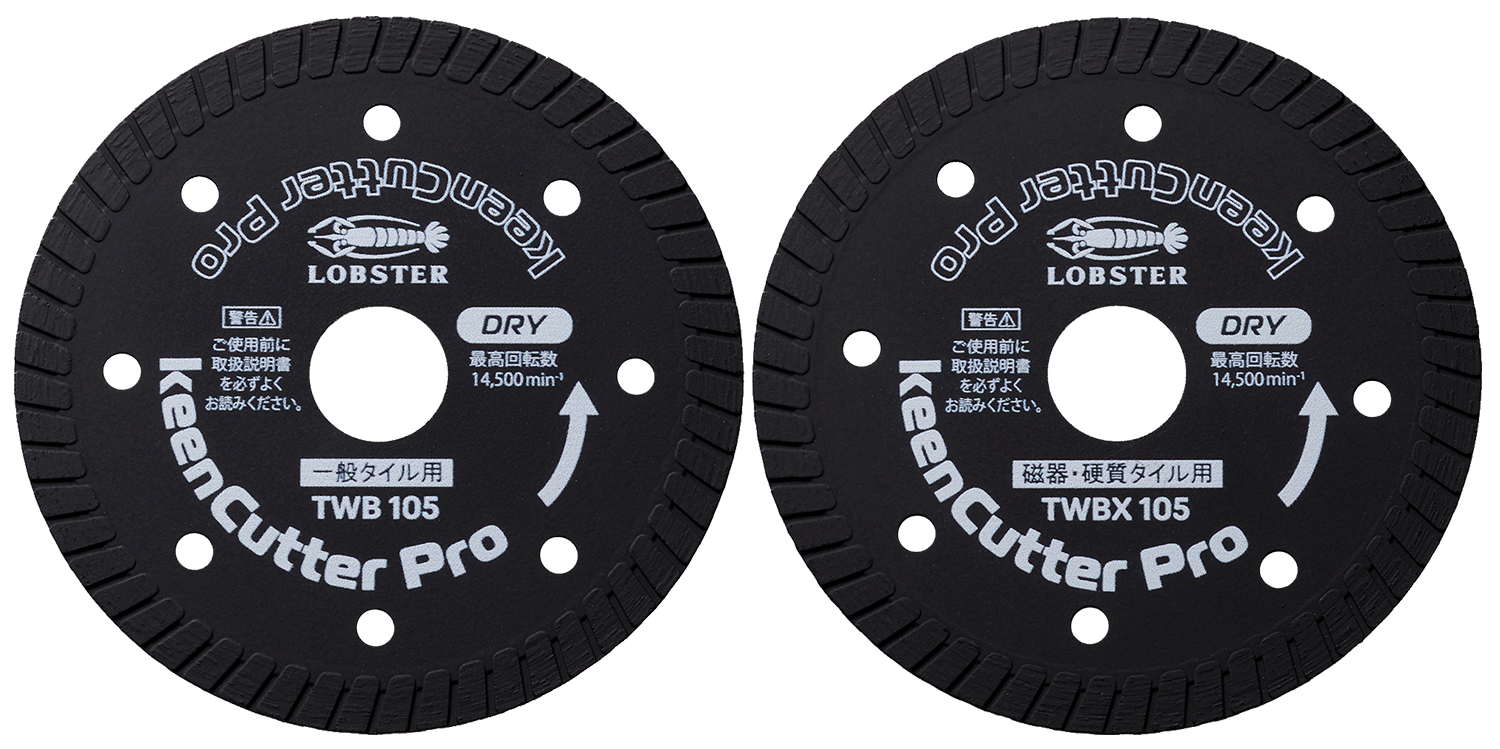

▶TWB series | Diamond Wheel Wave Type (Dry Cutting)
Ideal for cutting porcelain tiles, stoneware tiles, and ceramic tiles.

Suitable for both asphalt and concrete surfaces

▶ACE series | Diamond Road Cutting Blade Segment Type (Wet Cutting)
Ideal for cutting asphalt and pavement, concrete pavement, concrete blocks, bricks, and similar materials.


ROHS

仕様

For mortar, blocks and bricks, SE

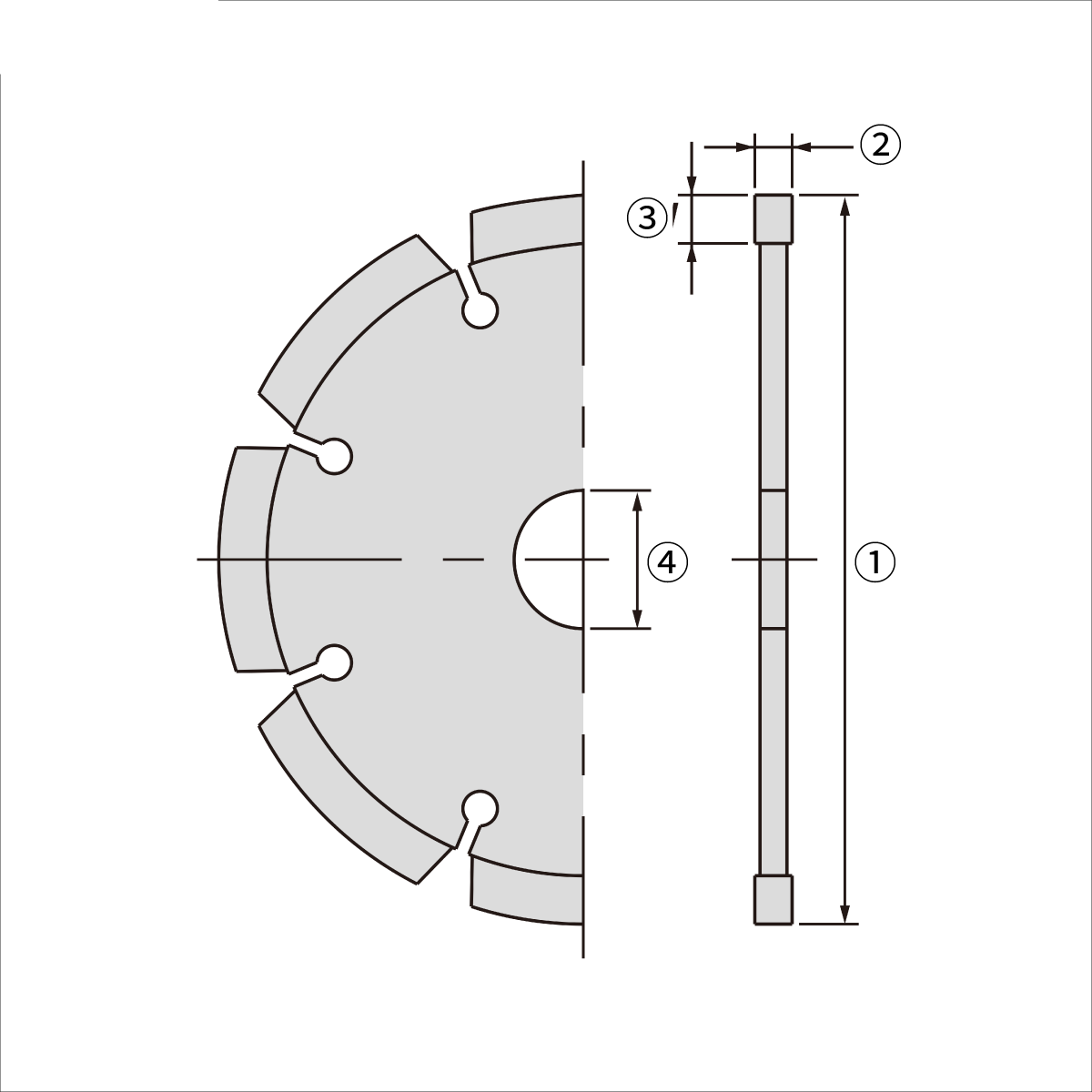

品番コード 商品重量 寸法１ 寸法２ 寸法３ 寸法４ セット内容 最高回転数 参考価格
SE105 85g 105mm 1.8mm 10.5mm 20.0mm Included ring(hole diameter：φ15mm) 14500min-1(rpm) オープン価格
SE125 145g 126mm 2.2mm 8.4mm 22.0mm Included ring(hole diameter：φ20mm) 12200min-1(rpm) オープン価格
SE305305 1340g 305mm 2.8mm 7.0mm 30.5mm Included ring(hole diameter：φ25.4φ22φ20mm) 6300min-1(rpm) オープン価格

!使用上のご注意

- Before use, be sure to read and fully understand the supplied instruction manual, all warnings on the product and packaging, and the operating manual for the power tool.
- Always install the wheel guard specified by the machine manufacturer correctly before operation.
- Never perform zigzag cutting, curved cutting, freehand bevel cutting (without a guide), twisting, prying, or side grinding with this cutting wheel.
- Never touch the wheel with your hands or any part of your body while it is rotating.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, safety footwear, and a hard hat. A damaged wheel may eject fragments, creating a risk of serious injury.
- Always wear a dust mask (respirator) and earplugs.
- Dust generated during cutting may damage the respiratory system, and prolonged exposure to noise may result in hearing impairment.

!表記数値のご注意

※ 寸法・重量などは公称値ですので、多少の数値の上下があります。
※ 改良の為、仕様等を予告なく変更することがあります。
※ 記載の価格は｢参考価格｣で消費税は含まれておりません。
ご購入の際はLOBSTER(エビ印)商品の取扱店にご確認ください。
